YUNPEN USA
YAC-P SERIES
1. FEATURES
  • General purpose filter with IEC Connector providing effective line-to-ground noise up to 10 amp., 250VAC
  • Low cost
  • Compact design
  • OUTPUT PCB TYPE TERMINALS
  • All parts are approved by UL, CSA AND VDE

2. SPECIFICATIONS
ITEM \ MODEL
YAC01P
YAC03P
YAC06P
YAC10P
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.60 ~ 45MHZ
0.10 ~ 40MHZ
0.80 ~ 50MHZ
0.20 ~ 50MHZ
0.80 ~ 50MHZ
0.40 ~ 50MHZ
1.00 ~ 50MHZ
1.00 ~ 50MHZ

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE
CURRENT
FREQUENCY-MHZ
RATING
0.15
0.5
1.0
5.0
10.0
30.0
YAC01P
1A
25
35
38
41
37
20
YAC03P
3A
17
29
37
36
34
20
YAC06P
6A
13
21
26
40
42
25
YAC10P
10A
6
14
19
33
40
24
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YAC01P
1A
6
18
24
43
43
27
YAC03P
3A
7
17
22
41
41
28
YAC06P
6A
6
16
21
37
43
34
YAC10P
10A
4
13
18
31
41
34

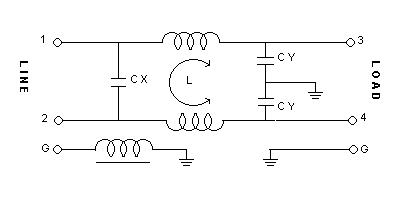

4. CIRCUIT

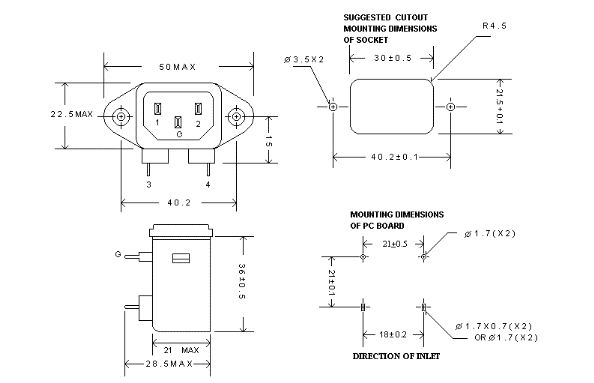

5. DIMENSION (mm)


YAC01P~YAC10P



Download yacp.pdf Specification File (77K)
