YUNPEN USA
YA-P SERIES
1. FEATURES
  • General purpose filter with IEC Connector providing effective line-to-ground noise up to 10 amp., 250VAC
  • Low cost
  • Compact design
  • OUTPUT PCB TYPE TERMINALS
  • All parts are approved by UL, CSA, VDE, SEMKO, NEMKO, DEMKO and FIMKO

2. SPECIFICATIONS
ITEM \ MODEL
YA01P
YA03P
YA06P
YA10P
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE

LINE TO GROUND
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN

COMMON MODE 25dbMIN
0.60 ~ 45MHZ

0.10 ~ 40MHZ
0.80 ~ 50MHZ

0.20 ~ 50MHZ
0.80 ~ 50MHZ

0.40 ~ 50MHZ
1.00 ~ 50MHZ

1.00 ~ 50MHZ
CX
0.1uF
0.1uF
0.1uF
0.1uF
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
3.7mH*2
1.8mH*2
0.7mH*2
0.3mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE
CURRENT
FREQUENCY-MHZ
RATING
0.15
0.5
1.0
5.0
10.0
30.0
YA01P
1A
27
36
41
35
36
46
YA03P
3A
23
31
34
36
36
40
YA06P
6A
13
16
19
29
33
46
YA10P
10A
5
13
21
34
37
47
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YA01P
1A
8
18
24
39
39
53
YA03P
3A
8
18
22
41
42
46
YA06P
6A
6
14
19
42
39
43
YA10P
10A
4
14
20
33
45
48

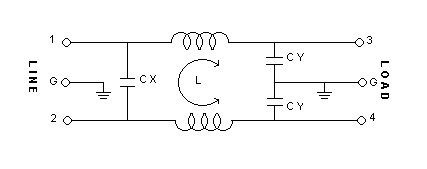

4. CIRCUIT

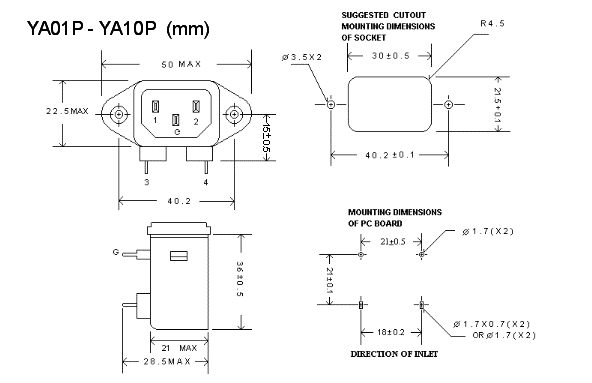

5. DIMENSION (mm)


YA01P~YA10P



Download yap.pdf Specification File (85K)
