YB-A1, YB-A3 SERIES
1. FEATURES
  • General purpose filter with IEC Connector providing effective line-to-ground noise up to 10 amp., 250VAC
  • Low cost
  • Compact design
  • 250 Fasten terminals (YB-A1)
  • Solder lug terminals (YB-A3)
  • All parts are approved by UL, CSA, VDE, SEMKO, NEMKO, DEMKO and FIMKO


2. SPECIFICATIONS
ITEM \ MODEL
YB01A1/YB01A3
YB03A1/YB03A3
YB06A1/YB06A3
YB10A1/YB10A3
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.50 ~ 45MHZ
0.10 ~ 40MHZ
0.60 ~ 50MHZ
0.15 ~ 50MHZ
0.80 ~ 50MHZ
0.40 ~ 50MHZ
1.20 ~ 50MHZ
1.40 ~ 50MHZ
CX
0.1uF
0.1uF
0.1uF
0.1uF
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
3.7mH*2
1.8mH*2
0.7mH*2
0.3mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YB01A1/YB01A3 1A 28 38 41 39 39 41
YB03A1/YB03A3 3A 22 32 36 36 37 38
YB06A1/YB06A3 6A 14 22 27 38 42 47
YB10A1/YB10A3 10A 6 14 17 30 36 43
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YB01A1/YB01A3 1A 9 18 24 42 42 41
YB03A1/YB03A3 3A 8 17 23 38 39 43
YB06A1/YB06A3 6A 7 16 22 43 43 39
YB10A1/YB10A3 10A 5 14 18 37 46 41

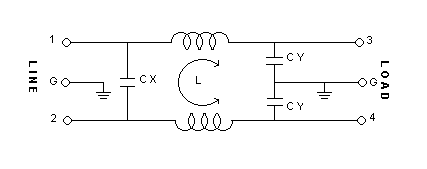

4. CIRCUIT

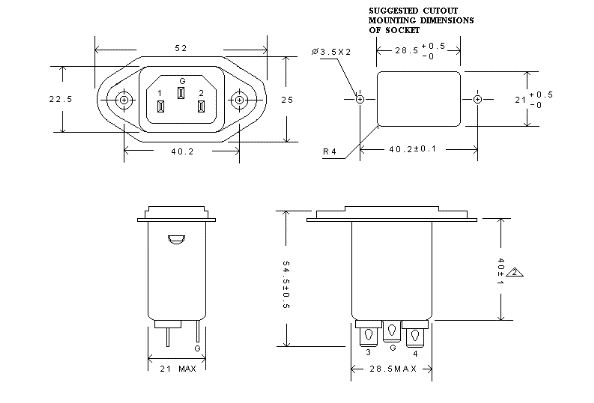

5. DIMENSION (mm)


YB01A1~YB10A1

YB01A3~YB10A3


Download yba1a3.pdf Specification File (86K)
