YUNPEN USA
YBC-T1, YBC-T3 SERIES
1. FEATURES
  • General purpose filter with IEC Connector providing effective line-to-ground noise up to 10 amp., 250VAC
  • Low cost
  • Compact design
  • 250 Fasten terminals (YBC-T1)
  • Lolder lug terminals (YBC-T3)
  • All parts are approved by UL, CSA and VDE


2. SPECIFICATIONS
ITEM \ MODEL
YBC01T1/YBC01T3
YBC03T1/YBC03T3
YBC06T1/YBC06T3
YBC10T1/YBC10T3
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE

LINE TO GROUND
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN

COMMON MODE 25dbMIN
0.50 ~ 45MHZ

0.10 ~ 40MHZ
0.60 ~ 50MHZ

0.15 ~ 50MHZ
0.80 ~ 50MHZ

0.40 ~ 50MHZ
1.20 ~ 50MHZ

1.40 ~ 50MHZ

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YBC01T1/YBC01T3 1A 25 33 36 44 36 21
YBC03T1/YBC03T3 3A 20 30 35 43 37 22
YBC06T1/YBC06T3 6A 13 21 26 42 40 25
YBC10T1/YBC10T3 10A 6 13 17 36 40 25
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YBC01T1/YBC01T3 1A 7 18 23 41 38 25
YBC03T1/YBC03T3 3A 7 17 21 40 37 26
YBC06T1/YBC06T3 6A 6 15 21 38 37 29
YBC10T1/YBC10T3 10A 4 13 17 30 36 29

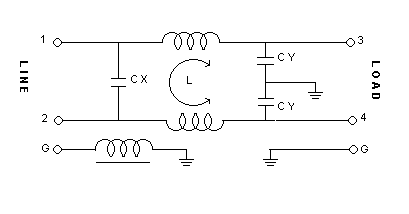

4. CIRCUIT

5. DIMENSION (mm)

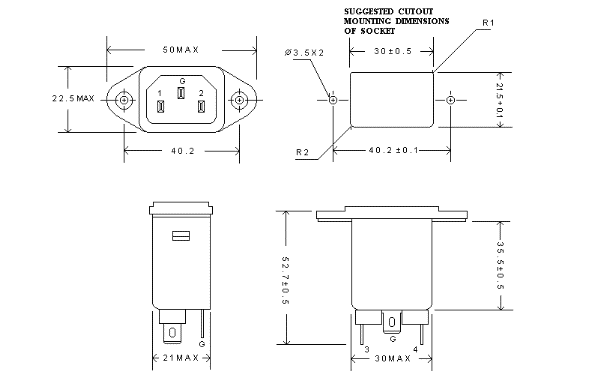

YBC01T1~YBC10T1

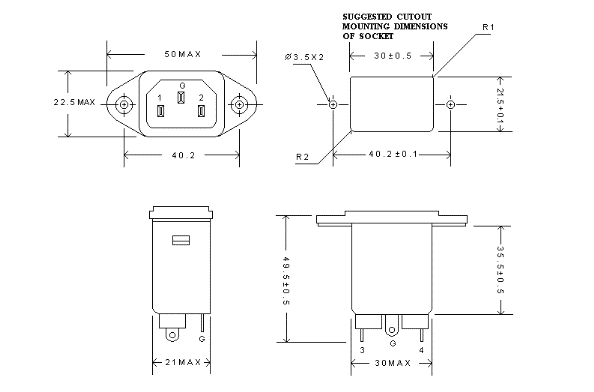

YBC01T3~YBC10T3



Download ybct1t3.pdf Specification File (81K)
