YUNPEN USA
YB-T1, YB-T3 SERIES
1. FEATURES
  • General purpose filter with IEC Connector providing effective line-to-ground noise up to 10 amp., 250VAC
  • Low cost
  • Compact design
  • 250 Fasten terminals (YB-T1)
  • Solder lug terminals (YB-T3)
  • All parts are approved by UL, CSA, VDE, SEMKO, NEMKO, DEMKO and FIMKO


2. SPECIFICATIONS
ITEM \ MODEL
YB01T1/YB01T3
YB03T1/YB03T3
YB06T1/YB06T3
YB10T1/YB10T3
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.50 ~ 45MHZ
0.10 ~ 40MHZ
0.60 ~ 50MHZ
0.15 ~ 50MHZ
0.80 ~ 50MHZ
0.40 ~ 50MHZ
1.20 ~ 50MHZ
1.40 ~ 50MHZ
CX
0.1uF
0.1uF
0.1uF
0.1uF
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
3.7mH*2
1.8mH*2
0.7mH*2
0.3mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YB01T1/YB01T3 1A 18 19 22 36 35 44
YB03T1/YB03T3 3A 20 27 32 37 38 48
YB06T1/YB06T3 6A 12 18 24 38 41 37
YB10T1/YB10T3 10A 6 15 20 32 36 43
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YB01T1/YB01T3 1A 8 17 23 41 39 44
YB03T1/YB03T3 3A 7 18 26 38 42 45
YB06T1/YB06T3 6A 6 16 21 45 44 43
YB10T1/YB10T3 10A 4 14 19 35 43 41

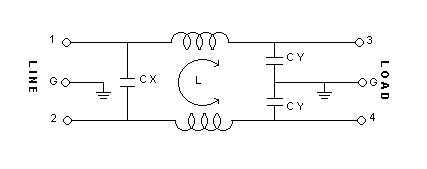

4. CIRCUIT

5. DIMENSION (mm)

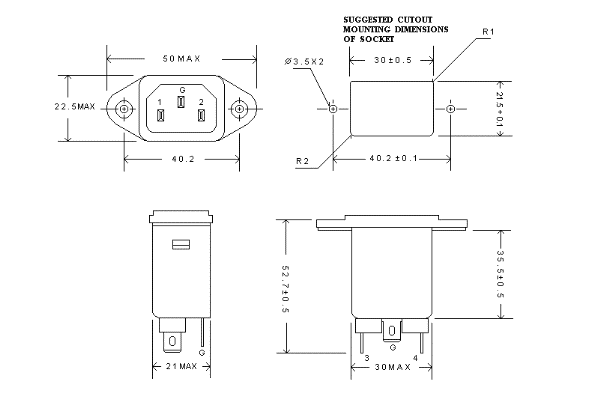

YB01T1~YB10T1

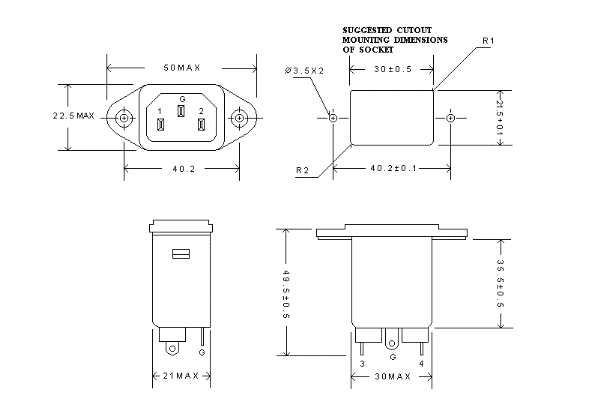

YB01T3~YB10T3



Download ybt1t3.pdf Specification File (92K)
