YUNPEN USA
YC-T1, YD-T4 SERIES
1. FEATURES
  • Superior performance controlling EMI Suppression of both line-to-line and line-to-ground noise
  • Low cost
  • Compact design
  • 250 Fasten terminals (YC-T1)
  • Screw input/output terminals M-4. (YD-T4)
  • All parts of YC-T1 are approved by UL and CSA
  • All parts of YD-T4 are approved by UL, CSA and VDE


2. SPECIFICATIONS
ITEM \ MODEL
YC05T1/YD05T4
YC10T1/YD10T4
YC15T1/YD15T4
YC20T1/YD20T4
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
5A
10A
15A
20A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.3 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
0.05 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.27 ~ 45MHZ
0.30 ~ 40MHZ
0.36 ~ 50MHZ
0.67 ~ 50MHZ
0.50 ~ 50MHZ
1.80 ~ 50MHZ
1.60 ~ 50MHZ
1.80 ~ 50MHZ
CX
0.1uF*2
0.1uF*2
0.1uF*2
0.1uF*2
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
1.7mH*2
1.2mH*2
0.9mH*2
0.5mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YC05T1/YD05T4 5A 17 27 31 42 46 42
YC10T1/YD10T4 10A 16 24 28 34 36 40
YC15T1/YD15T4 15A 14 19 22 32 33 41
YC20T1/YD20T4 20A 7 17 22 32 34 50
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YC05T1/YD05T4 5A 7 37 37 46 42 37
YC10T1/YD10T4 10A 9 36 35 40 42 38
YC15T1/YD15T4 15A 10 32 28 37 38 40
YC20T1/YD20T4 20A 7 27 28 36 39 46

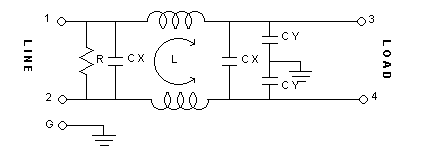

4. CIRCUIT

5. DIMENSION(mm)

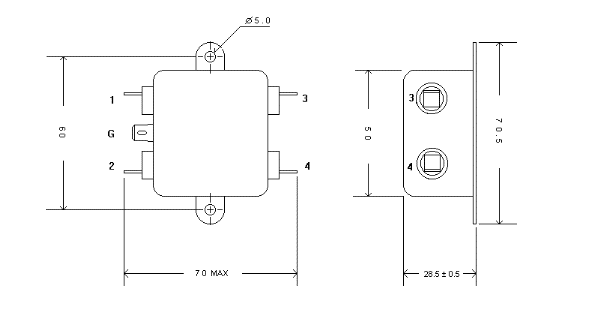

YC05T1~YC20T1

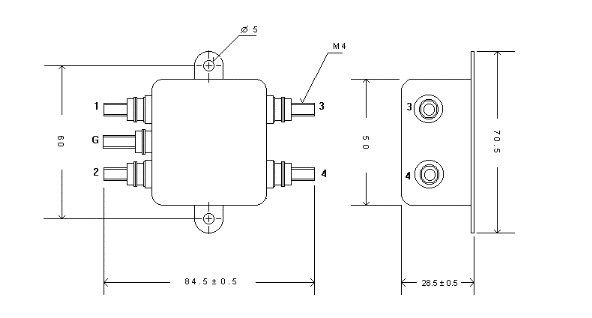

YD05T4~YD20T4



Download yct1ydt4.pdf Specification File (78K)
