YUNPEN USA
YE-T1L2, YE-T4L2 SERIES
1. FEATURES
  • Two stage filters designed to provide high performance in supperssing both line-to-line and line-to-ground noise for most digital electronic equipment
  • 250 Fasten terminals (YE-T1L2)
  • Screw output terminals M-4 (YE-T4L2)
  • All parts of YE-T1L2 and YE-T4L2 are approved by UL, CSA and VDE


2. SPECIFICATIONS
ITEM \ MODEL
YE05T1L2/YE05T4L2
YE10T1L2/YE10T4L2
YE15T1L2/YE15T4L2
YE20T1L2/YEA20T4L2
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
5A
10A
15A
20A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE

LINE TO GROUND
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.3 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
0.05 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30CMAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN

COMMON MODE 25dbMIN
0.25 ~ 12MHZ

0.10 ~ 10MHZ
0.33 ~ 13MHZ

0.26 ~ 11MHZ
0.61 ~ 50MHZ

0.40 ~ 48MHZ
0.68 ~ 50MHZ

0.40 ~ 50MHZ
CX
0.1uF*3
0.1uF*3
0.1uF*3
0.1uF*3
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
5mH*2
1.2mH*2
0.9mH*2
0.5mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YE05T1L2/YE05T4L2 5A 53 84 70 58 53 51
YE10T1L2/YE10T4L2 10A 26 63 76 66 62 42
YE15T1L2/YE15T4L2 15A 28 57 68 67 63 46
YE20T1L2/YE20T4L2 20A 14 39 49 63 59 38
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YE05T1L2/YE05T4L2 5A 7 57 58 57 52 48
YE10T1L2/YE10T4L2 10A 8 77 72 62 57 53
YE15T1L2/YE15T4L2 15A 15 33 60 59 56 61
YE20T1L2/YE20T4L2 20A 13 25 57 64 57 45

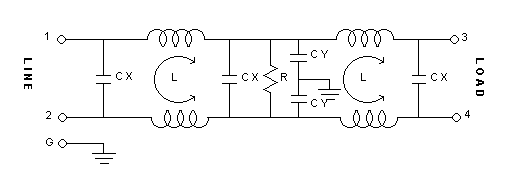

4. CIRCUIT

5. DIMENSION(mm)

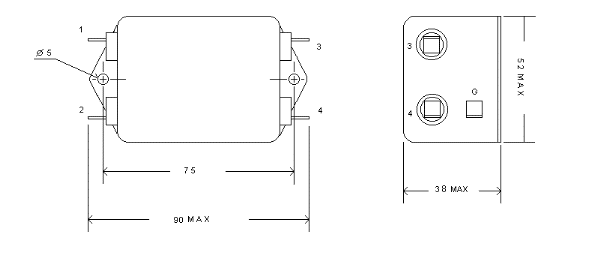

YE05T1L2~YE20T1L2

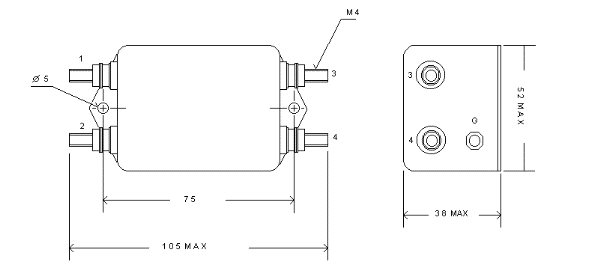

YE05T4L2~YE20T4L2



Download yet1l2t4l2.pdf Specification File (83K)
