YUNPEN USA
YH-T4 SERIES
1. FEATURES
  • Good noise attenuation in both forward and reverse directions for common mode and normal mode.
  • Hight relibaility designed for industrial equipment usage with 3 phases, 250vac/500vac
2. SPECIFICATIONS
ITEM \ MODEL
YH10T4/YH10T4-1
YH15T4/YH15T4-1
YH20T4/YH20T4-1
YH30T4/YH30T4-1
RATED VOLTAGE
250V AC/500V AC
250V AC/500V AC
250V AC/500V AC
250V AC/500V AC
RATED CURRENT
10A
15A
20A
30A
LEAK CURRENT
1.3mA MAX 250V,50HZ
3.0mA MAX 500V,50HZ
1.3mA MAX 250V,50HZ
3.0mA MAX 500V,50HZ
1.3mA MAX 250V,50HZ
3.0mA MAX 500V,50HZ
1.3mA MAX 250V,50HZ
3.0mA MAX 500V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 500VDC
100M ohm MIN 250VDC
100M ohm MIN 500VDC
100M ohm MIN 250VDC
100M ohm MIN 500VDC
100M ohm MIN 250VDC
100M ohm MIN 500VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.16 ~ 50MHZ
0.24 ~ 50MHZ
0.80 ~ 50MHZ
0.20 ~ 50MHZ
0.80 ~ 50MHZ
0.40 ~ 50MHZ
1.38 ~ 50MHZ
0.70 ~ 50MHZ
CX
0.2uF*3
0.2uF*3
0.2uF*3
0.2uF*3
CY
3300pF*3
3300pF*3
3300pF*3
3300pF*3
INDUCTANCE
(1.45+0.9)mH*3
(0.7+0.74)mH*3
(0.51+0.46)mH*3
(0.36+0.35)mH*3

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YH10T4 10A 22 62 71 77 64 39
YH15T4 15A 11 48 57 62 60 34
YH20T4 20A 9 38 49 55 53 33
YH30T4 30A 6 37 50 59 63 47
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YH10T4 10A 29 60 68 80 69 49
YH15T4 15A 15 52 61 73 65 42
YH20T4 20A 16 45 55 64 63 39
YH30T4 30A 13 41 55 59 43 35

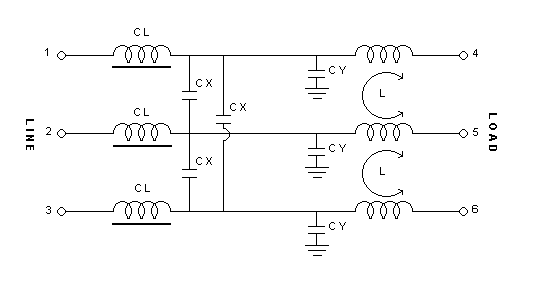

4. CIRCUIT

5. DIMENSION(mm)

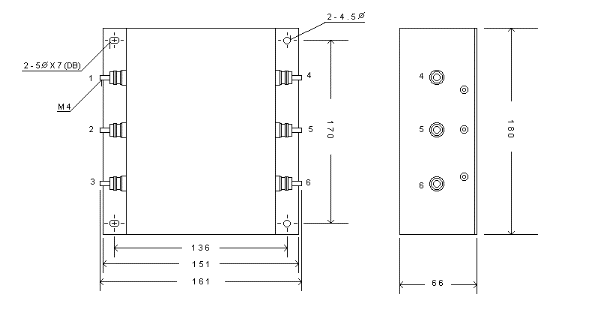

YH10T4~YH30T4

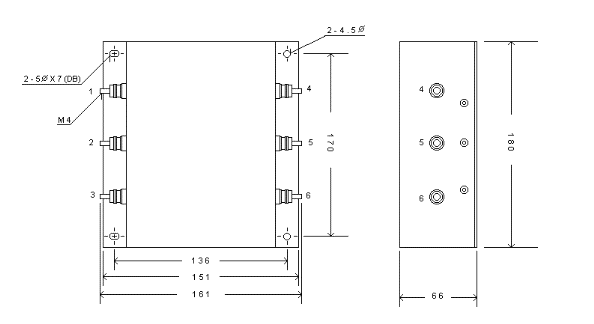

YH10T4-1~YH30T4-1



Download yht4.pdf Specification File (82K)
