YUNPEN USA
YA-T1, YA-T3 SERIES
1. FEATURES
  • General purpose filter with IEC Connector providing effective line-to-ground noise up to 10 amp., 250VAC
  • Low cost
  • Compact design
  • 250 Fasten terminals (YA-T1)
  • Solder lug terminals (YA-T3)
  • All parts are approved by UL, CSA, VDE, SEMKO, NEMKO, DEMKO and FIMKO


2. SPECIFICATIONS
ITEM \ MODEL
YA01T1/YA01T3
YA03T1/YA03T3
YA06T1/YA06T3
YA10T1/YA10T3
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.60 ~ 45MHZ
0.10 ~ 40MHZ
0.80 ~ 50MHZ
0.20 ~ 50MHZ
0.80 ~ 50MHZ
0.40 ~ 50MHZ
1.00 ~ 50MHZ
1.00 ~ 50MHZ
CX
0.1uF
0.1uF
0.1uF
0.1uF
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
3.7mH*2
1.8mH*2
0.7mH*2
0.3mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YA01T1/YA01T3 1A 25 35 38 37 37 37
YA03T1/YA03T3 3A 23 33 37 38 40 39
YA06T1/YA06T3 6A 15 21 25 37 38 43
YA10T1/YA10T3 10A 5 14 21 34 38 42
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YA01T1/YA01T3 1A 7 18 24 39 38 40
YA03T1/YA03T3 3A 7 17 22 41 40 37
YA06T1/YA06T3 6A 7 16 21 40 39 37
YA10T1/YA10T3 10A 4 14 20 35 42 37

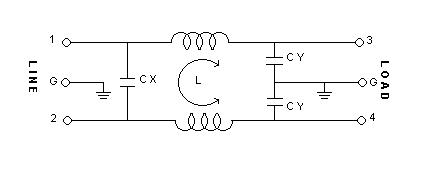

4. CIRCUIT

5. DIMENSION (mm)

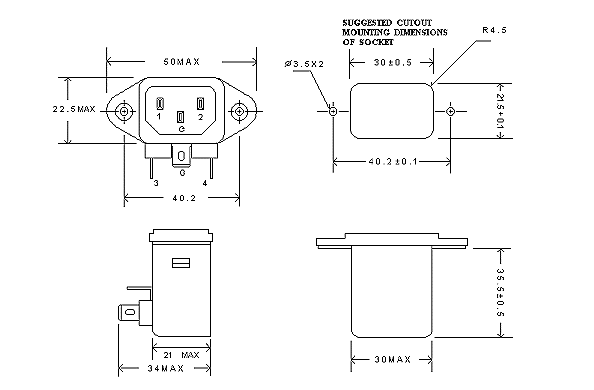

YA01T1~YA10T1

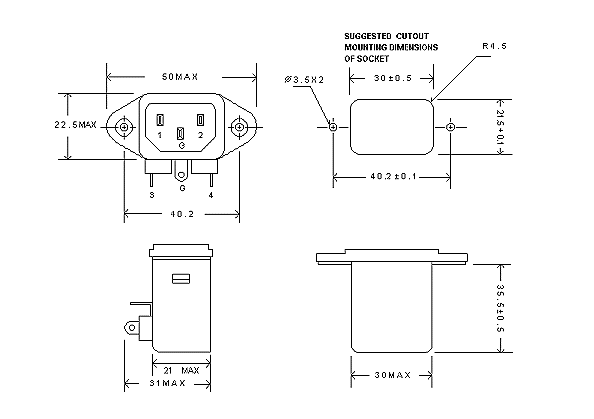

YA01T3~YA10T3



Download yat.pdf Specification File (87K)
